The Keychron Q3 Max is a fully wireless, full-metal mechanical keyboard that refuses to make the compromises that usually come with that description. It solves the long-standing problem of choosing between premium build quality and a cable-free desk — and it does it without sacrificing the customisation depth that enthusiasts expect. The Q3 Max ISO collection covers UK, German, Swiss, and Nordic layouts, each with extra keycaps suitable for both Mac and Windows devices. Masked Studio
The Layout

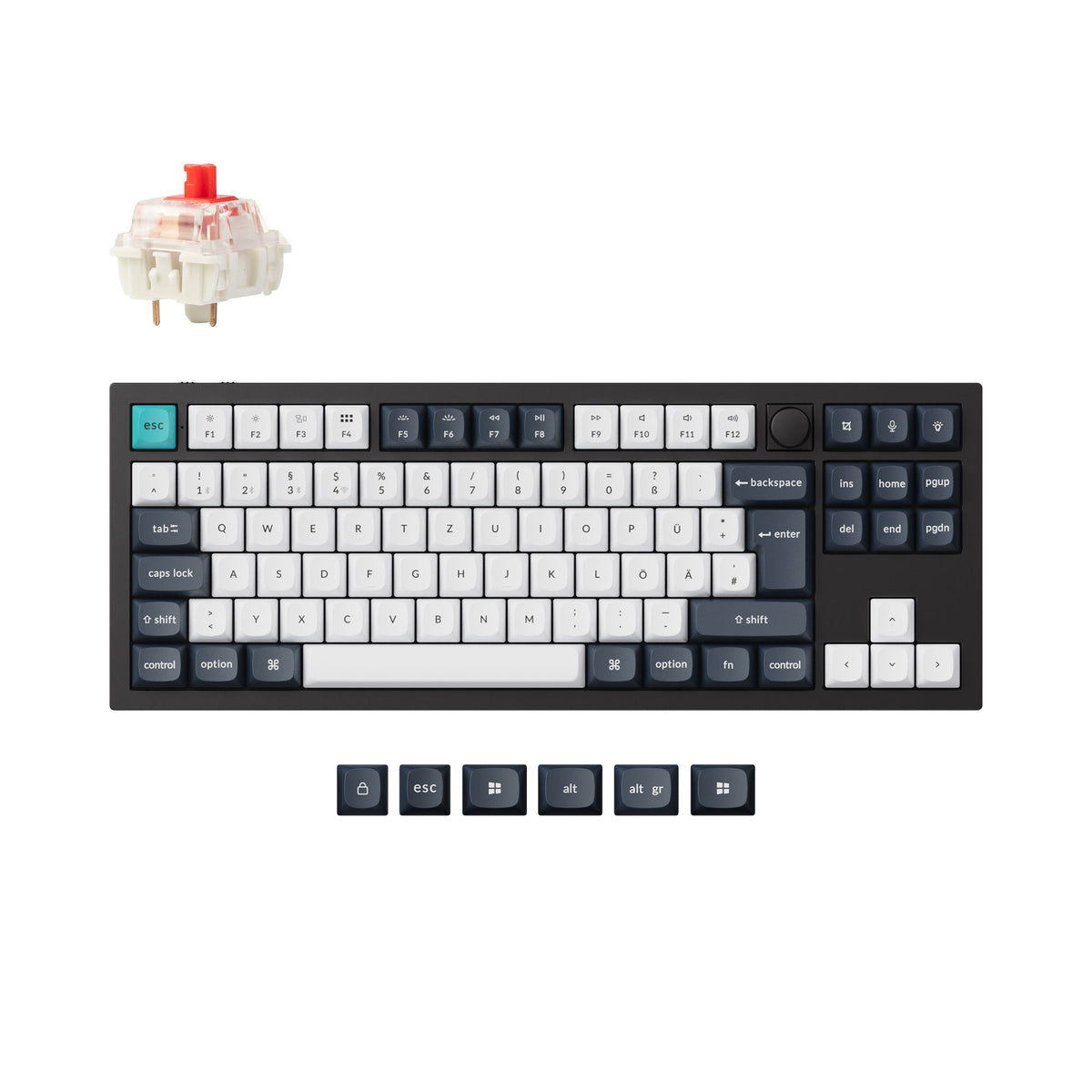

The Q3 Max uses an 80% tenkeyless (TKL) layout, which means the numpad is gone but everything else stays put — the full function row, the navigation cluster, and the arrow keys all sit exactly where you expect them. This makes the TKL a practical choice for people who want more desk space without giving up any of their everyday keys, unlike smaller 65% or 75% boards where keys are folded into layers.
The ISO form factor itself is the key distinction here. Where the more common ANSI layout uses a wide, flat Enter key and a single-row left Shift, ISO uses a tall stepped Enter key and adds a dedicated key to the left of the right Shift — giving European language characters their proper dedicated positions rather than routing them through awkward key combinations. If you are coming from a standard UK, German, Nordic, or Swiss keyboard, the Q3 Max ISO will feel immediately familiar.
The Build
The Q3 Max is dense. The machined aluminium case is built from 6063 aluminum that is CNC machined, polished, anodized, sandblasted, and put through 24 additional manufacturing stages — and you can feel all of it the moment you pick the board up. What you get in return is a case with almost no flex and very little resonance, which pays dividends in both the typing sound and the long-term stability of the board on your desk.
The standout construction detail is the double-gasket design. In addition to the gaskets on the plates, Keychron added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals. Amazon This is a step beyond a conventional gasket mount, and it makes a real difference to how the board sounds and feels compared to direct or top-mount designs. Paired with many other premium features such as PBT keycaps and screw-in stabilizers, the Q3 Max promises a typing experience that transcends expectations. Mechanical Keyboards
The board also features a programmable knob on the top-right corner. You can easily customise the knob to your desired key or macro commands such as zooming in/out, adjusting screen brightness, brush size, volume, or selecting video clips or photos..
Connectivity
The Q3 Max features an 80% TKL layout and combines advanced 2.4 GHz wireless, Bluetooth, and Type-C wired connectivity. Keychron The 2.4 GHz connection runs at a 1000 Hz polling rate, making it the right choice for anything where responsiveness matters. Bluetooth drops to 90 Hz, which is perfectly comfortable for day-to-day productivity use, and supports pairing with up to three devices simultaneously — switching between your laptop, phone, and tablet with a dedicated key combination.
One note worth flagging for Mac users: the 2.4 GHz dongle is not USB-C Keychron, so if you are on a modern MacBook with only USB-C ports you will need a USB-A adapter or hub. The wired USB-C connection handles both charging and a direct wired mode with no such limitation.
Hot-Swap and Customisation
The hot-swappable sockets are mounted on the PCB, so you can install or change switches without soldering, and the PCB supports both 3-pin and 5-pin MX mechanical switches. Masked Studio The fully assembled versions of the ISO Q3 Max ship with Keychron's Gateron Jupiter switches in Red (linear), Brown (tactile), or Banana (tactile) variants, each pre-lubed from the factory.
The Q3 Max ISO comes with Keychron's OSA profile — OEM profile with spherical-angle — double-shot PBT keycaps, which aim to provide a more comfortable fingertip feel with excellent oil resistance for long-term use. Keychron Both Mac and Windows keycap sets are included in the box, and a side-mounted toggle switches the board between operating system modes, with a separate layout stored for each.
For remapping, the Q3 Max supports both QMK and VIA. It is worth being aware, however, that since the VIA code for the Q3 Max is still awaiting approval from GitHub, the board is not yet automatically recognized by VIA. You will need to download the appropriate keymap JSON file from Keychron, open VIA, turn on "Show Design tab" in the Settings tab, and drag the JSON file into the Design tab to get the keymap working. Masked Studio It is a one-time setup step but worth knowing about before you sit down expecting plug-and-play remapping.
Getting Started with the Q3 Max
To configure your layout, plug the Q3 Max in via USB-C and follow the VIA setup process above. Once the JSON file is loaded, you can remap any key, assign macros to the knob, and set up layers — with changes saving directly to the board's onboard memory so your layout travels with the keyboard. For 2.4 GHz use, plug the included USB-A receiver into a hub or adapter and hold the wireless toggle key in the function layer until the indicator confirms the connection. Bluetooth pairing works through the same function layer and stores up to three paired devices independently.
If you plan to swap switches, the included switch and keycap pullers make the job straightforward — no additional tools are needed, and the hot-swap sockets handle both 3-pin and 5-pin MX switches without modification.
Conclusion
In this article, we walked through what makes the Keychron Q3 Max ISO a compelling option for European keyboard users who do not want to compromise on build quality or wireless freedom. We looked at the double-gasket aluminium construction, the four available ISO layouts, the tri-mode wireless setup, the Gateron Jupiter switches with OSA PBT keycaps, and the VIA setup process that requires one extra step compared to the standard ANSI version. By choosing the Q3 Max ISO, you get a board that is purpose-built for your layout and fully open to modification whenever the mood strikes.
